Crossline laser CL4V LCD

Nivel System CL4V LCD is a multi-purpose 4D cross laser

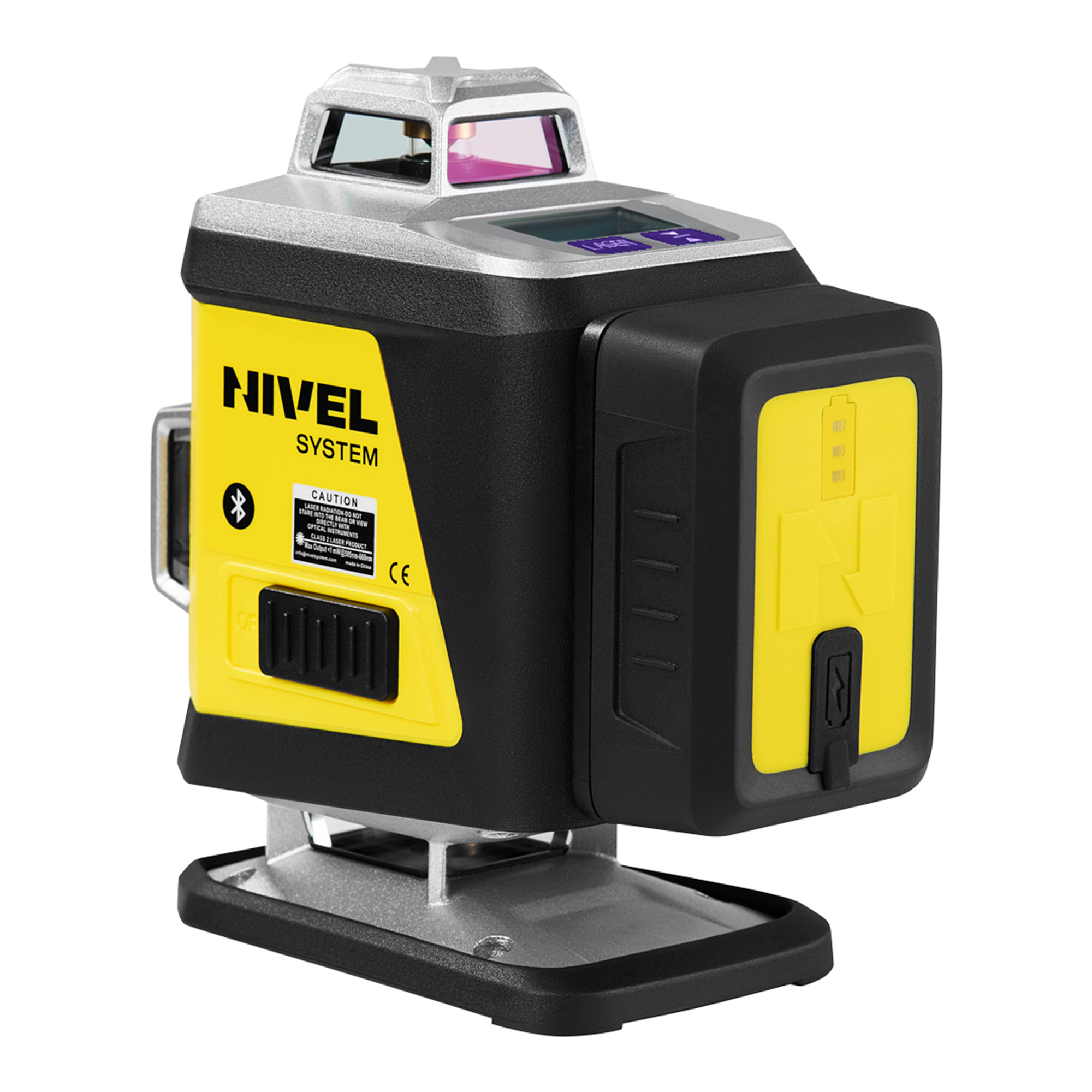

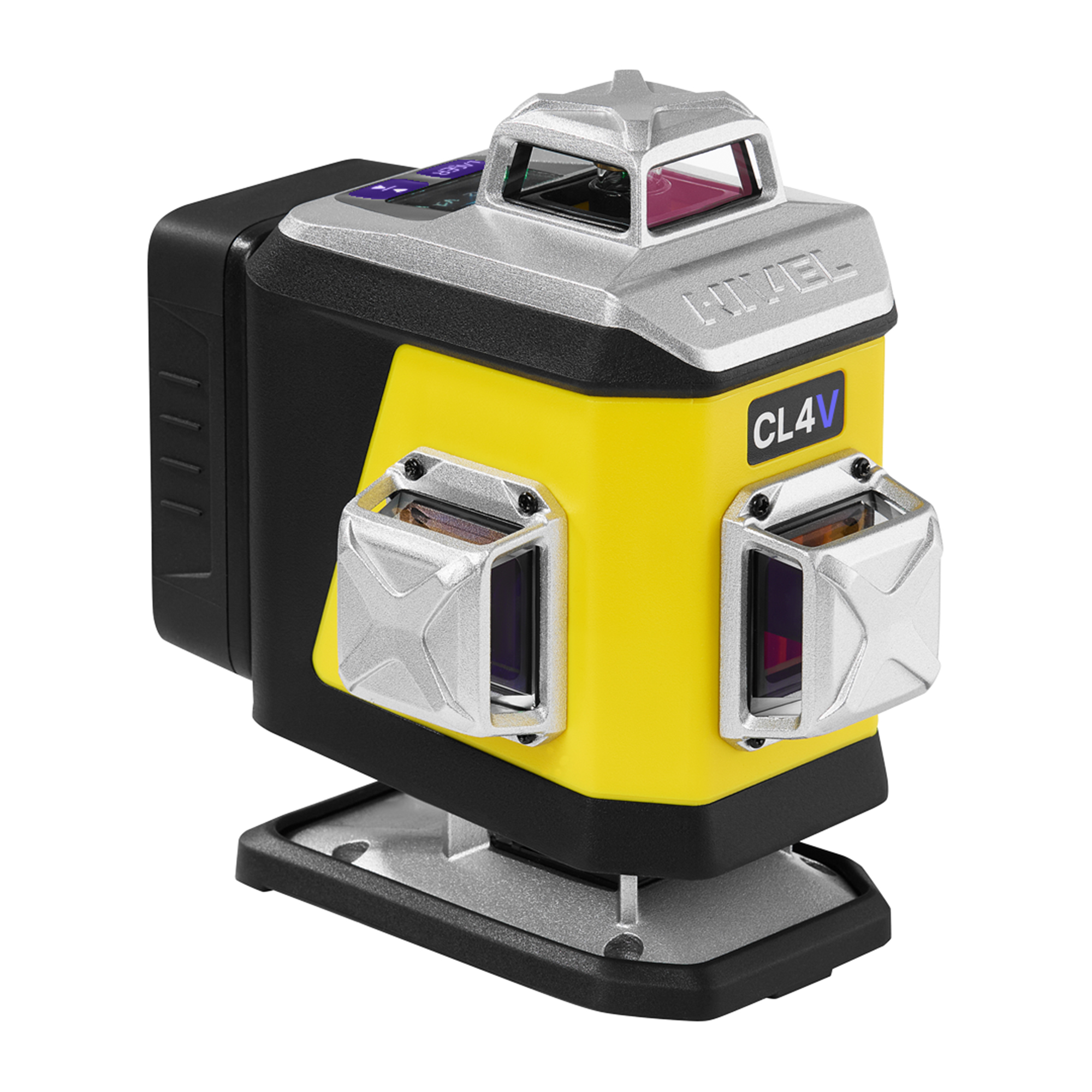

Nivel System CL4V LCD is a the multi-purpose 4D cross laser. Perfectly levelled reference lines (horizontal and vertical, each in the range of 360°), are projected on surfaces by the laser heads to support variety of construction and finishing works. The simultaneous projection of the two planes enables to determine right angles. This option is particularly useful for construction and tiling applications While the compensator locked the unit can also be tilted, thus work in slant planes. The built-in 1/4″ thread enables steady fastening the equipment to a tripod, adapter or laser shelf. The rubber protectors at the corners of the device body prevent from abrasion, shock or impact as well as provide a better grip.

• accuracy and reliability – fine beam of the violet laser (450nm) guarantees convenient work, it is free from overexposure and thus eye-tolerable, the unit enables work with the accuracy of ± 2 mm / 10 m
• versatility and multitasking – 4 laser planes (360 °), exceptionally low horizontal line (only 19 mm above the floor level) is a great aid in construction and finishing works (e.g. tiling)
• numerical elevation– with the DIGITAL receiver which displays elevation in millimetres
• quick and efficient levelling – a modern magnetic vibration compensation system ensures a quick preparation of the unit for work, the laser precisely sets the beam, even on an unstable base, as well as allows to work with slant planes after locking of the compensator
• even greater range – with pulse function and the sensor you can use the laser at large distances for outdoor applications (up to 140m)
• laser adapter and elevator – secure fastening even in difficult conditions on the site and fine height adjustment
• convenient power supply – Li-ion battery (8000 mAh), free from the memory-effect, chargeable also while in operation
• resistant to damage and wear– robust, metal-reinforced housing, laser heads protected by metal shields, rubber parts of the laser housing protect it from impact or shock damage, the unit is resistant to dust and water (IP54)

Easy and quick measurement

The laser will level out and get ready for operation right after turning on. The generated violet laser beam is highly visible, projected on the wall creates a reference line for horizontal and vertical work

Versatility

The CL4V LCD allows to work with horizontal and vertical beams. The planes can be displayed separately or combined.

Comfortable operation

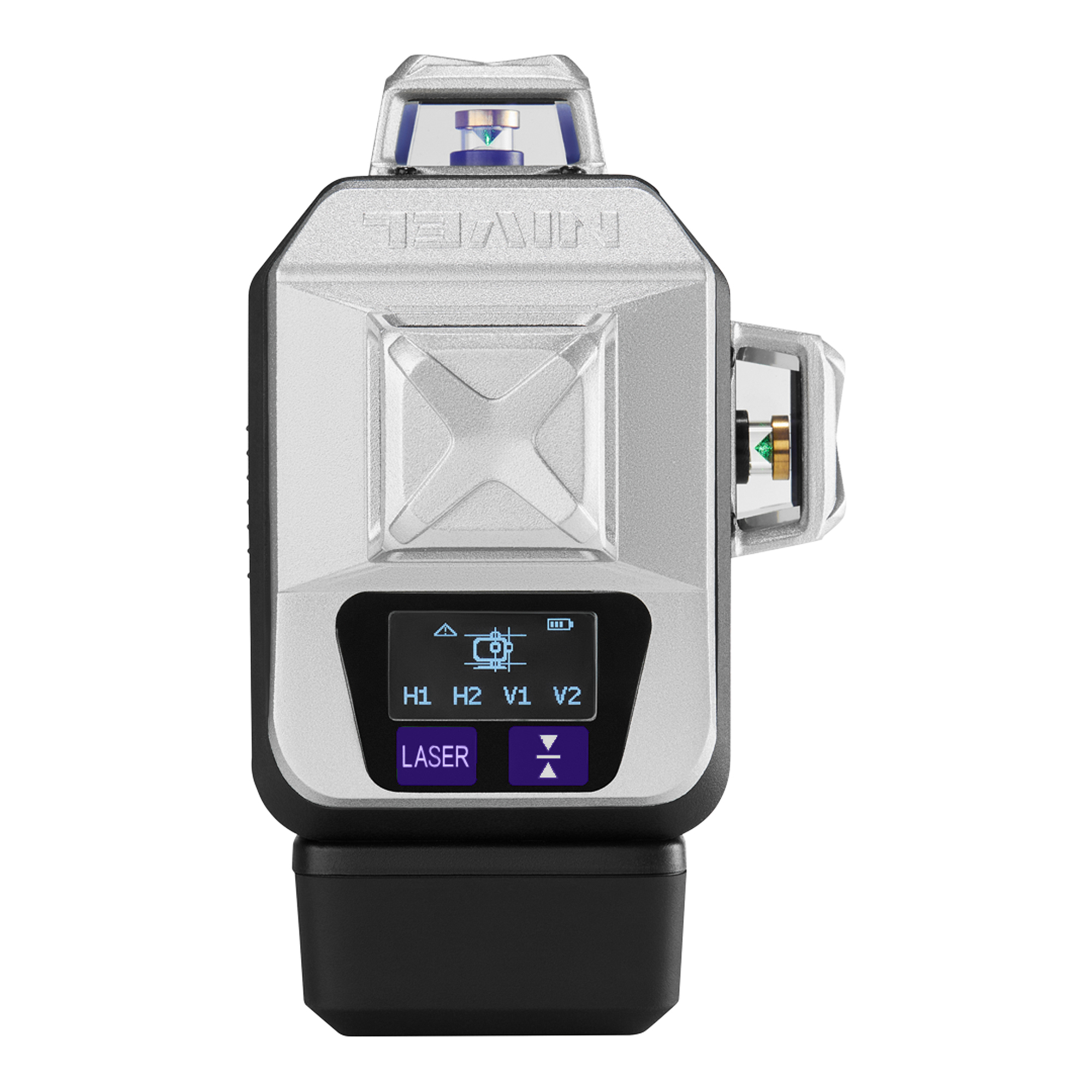

CL4V LCD has an intuitive control panel. Function management, including the precise adjustment of the beam, is performed quickly and efficiently. The laser is powered by a lithium battery and is embodied in the compact housing which makes the laser handy, easy to install on site and carry. The laser functions can now be managed from mobile phones via Bluetooth by a dedicated app.

Comfortable use

CL4V LCD has an intuitive control panel with LCD. Operation of functions, including precise alignment of the beam, is efficient and effective. Thanks to the Bluetooth module, the user can control the laser functions using mobile devices. The whole thing is complemented by a compact housing, thanks to which the laser is handy, easy to install on the construction site and easy to transport.

• Perfectly stands out on construction sites, surrounded by other colored beams
• Recommended for all work requiring high precision
• Improves work comfort – the beam is clearer and not overexposed
• Very well-defined beam edge – similar to a blue beam

Download the APP

Designed in Europe

The most valuable experience – thinking outside the box!

The latest series of crossline lasers CL and rotating lasers NL were developed and designed in Poland. The design is the result of experience in the development of measuring technology and at the same time the ability to think outside the box.
