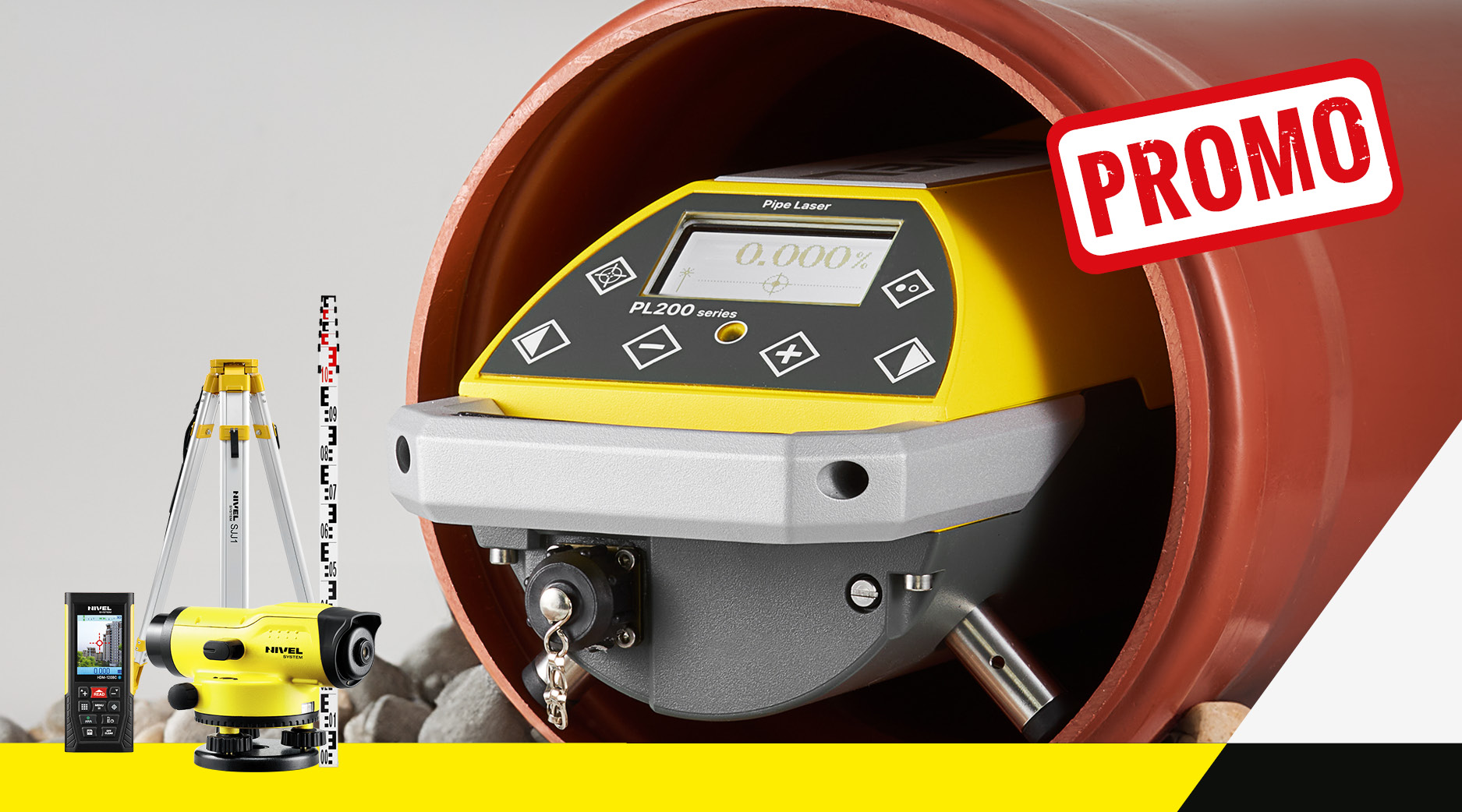

PL200R PLUS laser measuring system
BECAUSE EVERY MILLIMETER MATTERS
Gain an advantage in the field with the PL200R PLUS—a complete field geometry measurement system designed for water and sewer network construction. Now you can purchase it at an exceptionally attractive price.
Nivel System PL200R
– line laser, for determining direction
and slope in water and sewage infrastructure construction, direction and position of subsequent network pipes
determined by the laser line
Nivel System N32x set SJJ1 TS50
– classic leveling set, includes
an optical level with 32x magnification, a leveling rod (5 m) and a tripod. The set facilitates leveling and determines the direction when installing sewer manholes,
and helps to determine the direction when installing the first pipe of a pipeline.
Nivel System HDM-120 BC
– laser rangefinder with camera ensures fast
and accurate distance measurement up to 120 m in the field
(e.g., measurement of the length of a laid pipeline,
or the distance between water and sewage manholes)
The promotion is valid from November 3 to December 31, 2025, or while supplies last.
Technical parameters of the products in the set
PL200R line laser
• red laser beam • ±2.4 mm/50 m (10’’), 200 m • slope range: -10% ~+30% • Li-ion battery (50 h), IPX7
N32x optical level set
32x, 1.5 mm/1 km, IPX6 • TS-50 - 5 m telescopic patch • SJJ1 - aluminum tripod
HDM-120 BC rangefinder with camera
• ±2mm, 120m • area, volume, “Painter” function, Pythagoras • memory - 100 records • inclinometer ±90° • color display, USB, Bluetooth, rechargeable batteries • IP54

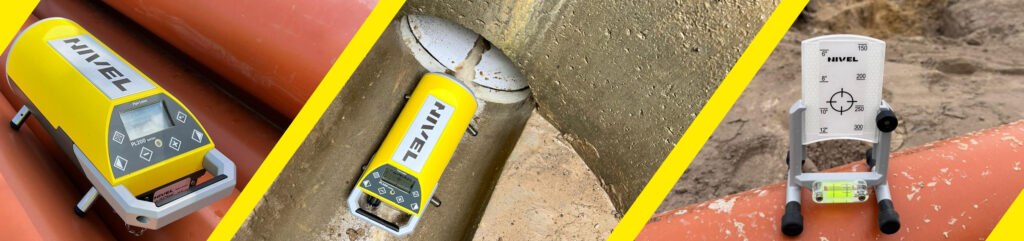

Linear, tubular level Nivel System PL200R
– a precise measuring device for marking out directions and gradients, essential for the construction of water and sewage networks
- versatility and modern solution for linear works (including water and sewage systems)
- high measurement accuracy of ±2.4 mm/50 m
- automatic target search function – the laser will find the direction itself and align itself with the target
- working comfort – intuitive operation, LCD display, remote control
- efficient power supply system – lithium batteries provide up to 50 hours of continuous operation
- Safe to use for years, rugged, proven design (IPX7)

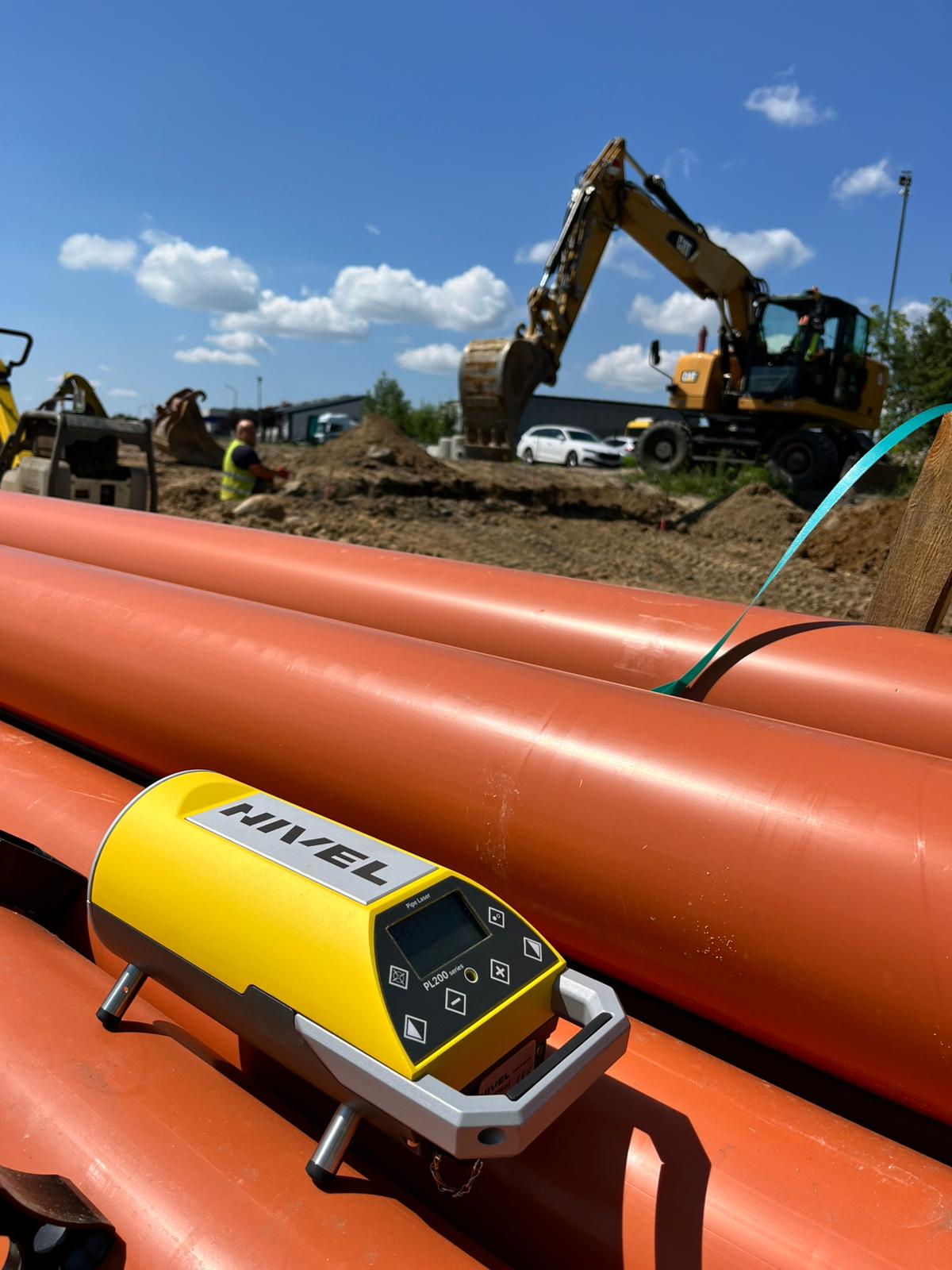

Application of the Nivel System PL200R2 line laser
• construction of sewage systems – precise marking out of directions and gradients during the construction of water and sewage networks
• road and earthworks – leveling long sections of the excavation line, marking out road curbs
• railway – construction of railway lines and platforms
• other linear works
