Laser

FL1G

  • Easy and quick to use floor laser
  • High measurement precision, 1,0mm / 5m
  • Comfort of work, green laser beam, work with inclined plane, also with sensor
  • Safe use for years, reliable, proven design (IP42)

Nivel System FL1G

multi floor laser crosliner, very good visibility of green laser

The laser square is designed for craftsman specially. It keeps the features of original square, and also project two laser extension lines of 90°each other simultaneously, which could extend the length of laser square obviously. It could also change the line marking angle according to the scale of angle measurement, which saves time in angle measurement and line marking. This is an ideal tool for angle layout, perfect for finishing, floor-laying works (e.g. tilling)

  • accurate and reliable equipment – a clear laser beam ensures comfortable working in all conditions, the equipment allows you to work with a high accuracy of ± 1mm/5m
  • very good visibility of green laser beam (also in bright rooms)
  • even greater range – pulse function allows you to work with laser sensor outdoors at large distances
  • versatility and multitasking – 2 beams are presented down (floor laser) + vertical and horizontal plane (in front)
  • fast levelling – built-in magnetic compensator quickly level the laser, dampens vibrations, provides comfort to users, even on an unstable surface
  • intuitive operation – one-touch control – turn on and measure!
  • laser mount – used to set up laser (tripod, extension pole)
  • resistant to damage – the laser housing, protect it from damage due to jolts and vibrations (IP42)

Applications

  • finishing works – vertical, horizontal as well as slants
  • screeds and floors – horizontal leveling
  • laying down tiles and terracotta
  • plasterboard works
  • leveling – indoors and outdoors

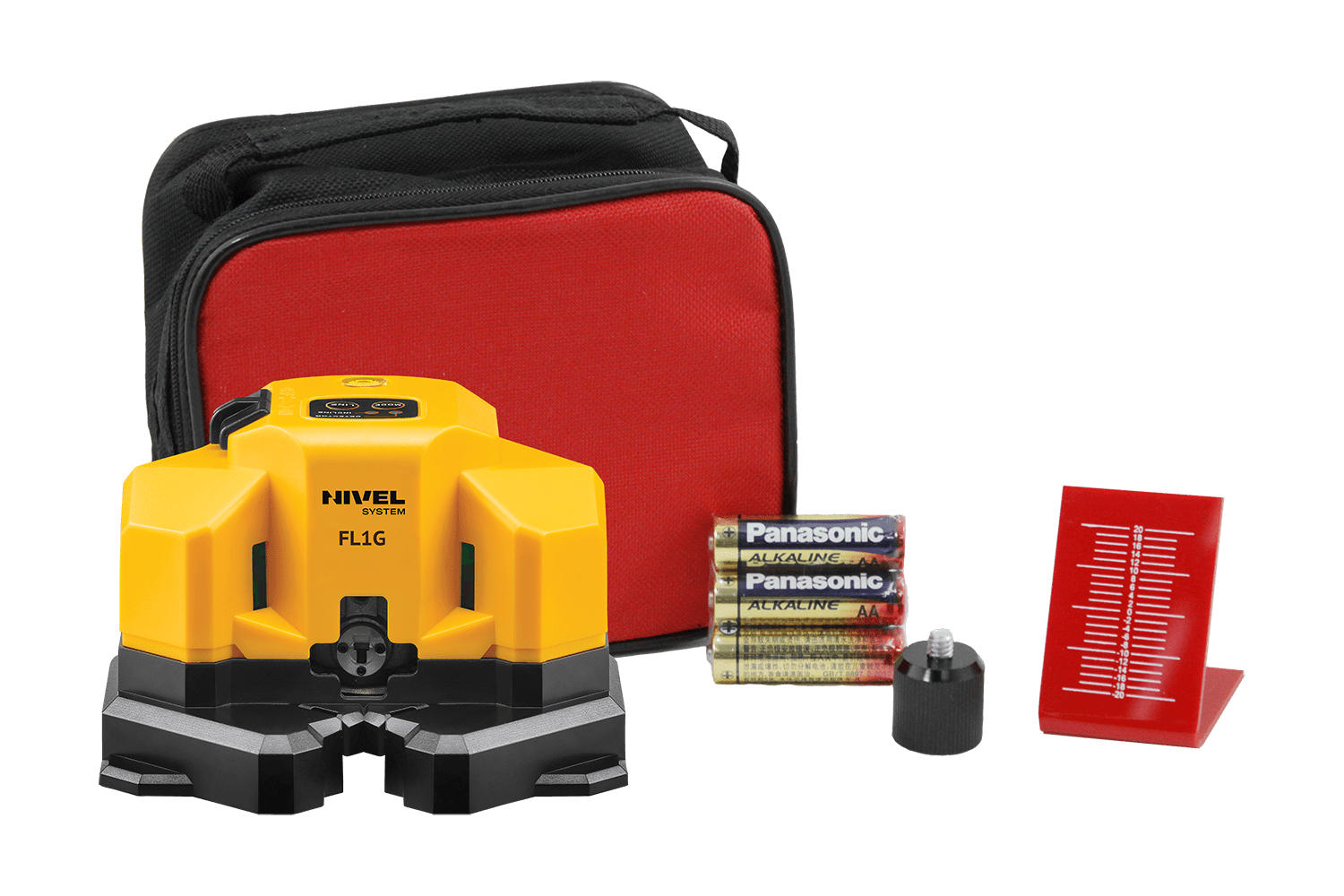

Includes

  • crossliner laser FL1G – 1 pc
  • laser target – 1 pc
  • dry battery – 3 pcs
  • tripod’s adapter (5/8″-1/4″) – 1 pc
  • transport bag – 1 pc

Specification

Laser beamgreen laser (532 nm), class 2
Accuracy±2,0mm/10m
Range of operation40 m (100 m with a sensor) – diameter
The inclination of planesYes
Self-leveling range±3.5°
Beam display / planes90° ±60’’
Mount (tripod)1/4’’
Power3×1,5V (AA)
Resistance classIP42
Operating temperature range-15°C to+45°C
Dimensions131 x 109 x 90 mm
Weight0,41 kg
